This product is suitable for connecting electronic computers and automation equipment with high interferenceimmunity requirements at rated voltages of 500V and below.The core insulation of the cable is made of low-densitypolyethylene with good chemical stability,.Polyethylene has high insulation resistance, good voltage resistance, lowdielectric constant, and low dielectric loss due to temperature and frequency. it not only meets the requirements oftransmission performance, but also ensures the service life of the cable.
Service support
Hotline：
0551-64426668
0551-64320387
Executive standard
TICW6-2009
Service conditions
◎ Long-term working temperature is 70°C;
◎ The ambient temperature during laying should not be lower than: fixed laying -40°c, non-fixed laying -15°c;
◎ Minimumbending radius: for cables without armor, it should not be less than 6 times the outer diameter of the cable, and for cableswith armor, it should not be less than 12 times the outer diameter of the cable.
Cable structure diagram
Cable type,designation and using area
Continued
Note:The above cables can be made into fiame-retardant type.
Double group wires O.D.reference
Continued
Reference for outer diameter of three pairs of wire sets
Continued
Structural size
Structural size

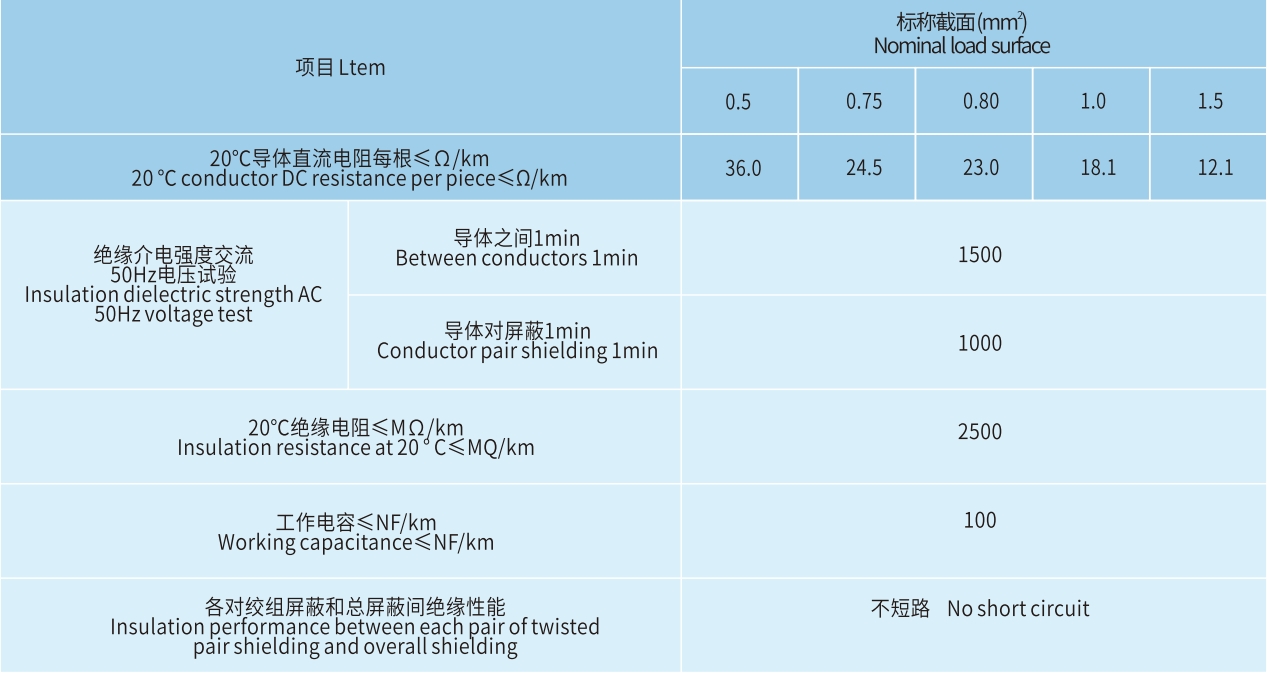

Technical performance
Delivery requirements
★ Delivery at anylength according to the agreement between the two parties
★ The cable should be neatly wound on the delivery reel. The ends should be well sealed. The length ofthe cable exposed outsidethe reel should meet the testing requirements.0nly cables ofthe same model and specification are allowed to be wound on adelivery reel.
★ When there is no agreement between the two parties, the delivery can be made according to the folowing reguirements
Technical performance
The insulation of cross-linked polyethylene insulated power cables adopts cross-linked polyethylene, which useschemical methods to convert linear molecular polyethylene into cross-linked polyethylene with a three-dimensionalnetwork structure, thereby greatly improving the mechanical properties of polyethylene and maintaining excellentelectrical properties.
PVC insulated power cables have good electrical performance and chemical stability.simple structure andconvenient use, suitable for fixed installation on transmission and distribution lines with AC 50Hz and rated voltage olkV and below, Five core power cables are used to separate the neutral and neutral lines in low-voltage distributionsystem engineering to meet the development and safety performance needs of the distribution system, making thesystem operation more stable and ensuring the safety of workers.
This product is suitable for overhead power lines with a rated voltage of 0.6/1kV and below, and can be used as afixed laying or incoming line. This product is extruded with weather resistant high-density polyethylene and weatherresistant polyvinyl chloride insulation outside tightly pressed copper and aluminum conductors. The cable is safe ancreliable, while also possessing excellent mechanical and electrical properties. Advantages such as resistance to electricatraces, surface discharge, and atmospheric conditions. The cable laying gap is smal, saving line corridors, reducing linevoltage, reducing power supply accidents, and ensuring personal safety. it is suitable for mountainous areas, forest areasmining areas, cities, and other occasions, and is an all-weather cable product.
This product is suitable for overhead power lines with a rated voltage of 10kV and below, and can be used as a fixed layingor incoming line, This product is extruded with weather resistant insulation outside tightly pressed copper and aluminumconductors, ensuring safe and reliable cable performance, while also possessing excellent mechanical and electrical propertiesAdvantages such as resistance to electrical traces, surface discharge, and atmospheric conditions. The cable laying gap is smallsaving line corridors, reducing line voltage, reducing power supply accidents, and ensuring personal safety. lt is suitable formountainous areas, forest areas, mining areas, cities, and other occasions, and is an all-weather cable product.
This product is suitable for power transmission and distribution lines with rated voltage of 10kV and below and certaintensile resistance reguirements, Due to its abilitv to withstand a certain tensile streneth,the instalation spacing can be increasedand the laving and operating environment reguirements are more flexible and convenient.
Purpose: Used in control, monitoring, circuits, and protection circuits with rated voltage of 450/750V and below. TyPe:KVV,KVWP,KVWP2,KVVP22,KVW22,KWWP2-22,KWR,KVWRP,KVW32.etc. Specification:nominal cross-section: 0.75-10mm',number of cable cores: 2-6l cores.
Purpose: Used in control, monitoring circuits, and protection circuits with rated voltage of 450/750V and below. Model:KYJV, KYJVP. KYJVP2、 KYJVP22. KYJV22、 KYJVP2-22、 KYJVR、 KYJVRP, KYJV32. KYJY, KYJYP etc. Specification: nominal section:0.75-10mm 2,Number of cable cores: 2-61
Applicable to 1kv-3kV voltage levels, cable operating temperature of 90'c in dry locations;can be installed verticallyindoors and outdoors, as well as on brackets or along walls;widely used in civil buildings, commercial, industrial, largevenues,entertainment venues,and other applications.
This product is suitable for fixed wiring (laving) of power devices with an AC rated voltage of450/750V and below.thas wide applications in low-voltage power lines, daily electrical, instrumentation, and telecommunications equipment.
lt is used to ensure the uninterrupted operation of fire-fighting power and important equipment such as firepumps,fire elevators, local lighting, emergency evacuation instructions, security monitoring, smoke evacuation systems, andself-contained power supplies in case of fire.
